Object Representation

Harlequin’s implementation achieves dynamic typing of Dylan objects by associating the type with an object based on tagging.

In many circumstances, the Dylan compiler can statically determine the type of an object. This knowledge can be used to select an alternative representation which is more efficient than the canonical representation. For example, the canonical representation of a double float object in Dylan is as a pointer to heap-allocated storage which contains the IEEE bit pattern of the double float in addition to a reference to the Dylan class object <double-float>. The compiler may choose to represent the value as a direct bit pattern, wherever this does not violate the semantics of the program.

Tagging Scheme

All Dylan values are represented as data of the same size, the size of a pointer. The bit pattern of these values contains tag bits which indicate whether the value is actually a pointer, or whether it is a direct value. Since there are three major groups (integers, characters and everything else), the representation for all platforms is to use two bits.

Tag Bits



Heap Allocated






Unicode Characters

Integers and Characters

Integers and characters are represented as direct values, using the tag bits as the only indication of type. The tagging scheme uses the least significant two bits. With this scheme, a character or integer is converted to its untagged representation by arithmetic right shifting by two bits. Similarly the conversion from an untagged to a tagged representation is to shift left and add in the tag bits.

Operations on these values (e.g., addition, or other arithmetic operations) are always performed on the untagged representation. This is sub-optimal, because it is possible to perform arithmetic operations directly on the tagged values. It is planned to improve this mechanism at a later date, along with a revision of the tagging scheme.

Boxed Objects

Apart from integers and characters, all Dylan objects are indirectly represented as boxed values (that is, they are pointers to heap allocated boxes). The runtime system is responsible for ensuring that these boxed values are appropriately tagged, because the runtime system provides the allocation service, and must ensure appropriate alignment.

Boxed objects are dynamically identified by their first slot, which is an identification wrapper. This identification wrapper (itself a boxed Dylan object) contains a pointer to the class of the object it is wrapping, as well as some encoded information for the garbage collector about which slots should be traced.


Boxed Objects

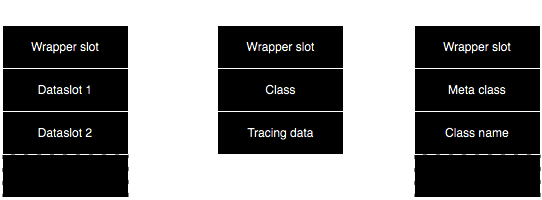

Note that two indirections are necessary to find the class of an object. In practice, this is a rare operation, because almost all dynamic class testing within Dylan is implicit, and the implementation can use the wrapper for these implicit tests. Note that there is potentially a many-to-one correspondence between wrapper objects and class objects.

The Dylan compiler builds literal boxed objects statically whenever it can. In practice, this will include most function objects apart from closures, virtually all wrappers, and most class objects, as well as strings, symbols, and literal vectors and lists.

Variably Sized Objects

Variably sized objects, such as strings, vectors and arrays, are boxed objects which contain a repeated slot. The repeated slot is implemented as a variably sized data area preceded by a normal slot containing the size of the variably sized data represented as a tagged integer. The size slot is used at the Dylan language level to determine the size of the array. There is also a special encoding for it in the tracing data of the wrapper so that the memory manager knows how to trace the repeated data. For example, an instance of the <byte-string> “foo” is represented as in:.


An Instance of <byte-string>

Function Objects

Dylan provides two built-in classes of functions: <generic-function> and <method>. These both obey the same general purpose calling convention, but also support specialized calling conventions (described below) which the compiler may use depending on the detail of its knowledge about the function being called, and the circumstances. Slots in the function object point to the code which implements each convention.

All functions also have a slot which encodes the number of required parameters the function accepts, and whether the function accepts optional or keyword parameters. Another slot in each function object contains a vector of the types which are acceptable for each required parameter. These slots are used for consistency checking of the arguments.

Generic functions have further slots which support the method dispatching process — including a slot which contains a vector of all the methods belonging to the generic function, and a slot which contains a cache of sorted applicable methods for combinations of arguments which have been processed before.

Methods may be closures, in which case a slot in the method object contains the environment for the method, which is represented as a vector of closed-over variables. If the variable is known actually to be constant, then the constant value is stored directly in the vector. Alternatively, if there is any possibility of an assignment to the variable, then the value is stored with an extra indirection to a value cell, which may be shared between many closures with related environments.
